Single-arm 3D measuring machine type AThe main material sources are extensive, the structure is simple, and it has a high cost performance |
Product Description
This series belongs to our company's entry-level products. The main material sources are extensive, the structure is simple, and it has a high cost-effectiveness. It is suitable for the conventional working environment of industrial production sites. Equipped withscratching needle head components, it can realize the marking function.
◆Precision displacement sensors with high IP protection levels are selected to ensure that they meet the on-site use environment.
◆The column and horizontal arm are made of steel, and are manually scraped and chrome-plated on the surface.
Technical Indicators
Unit: mm
| Measure height | 800 | 1000 | 1200 | 1500 | 2000 | 2500 | 3000 |
| Measure width | 800 | 1000 | 1200 | 1400 | |||
| Measuring length | 0~15000 | ||||||
| Positioning accuracy | ±(0.03+0.03L), L unit: m | ||||||
| Measuring accuracy | ±(0.05+0.05L), L unit: m | ||||||
| Repeatability | 0.03 | ||||||
| Notes | Special specifications can be customized on demand | ||||||

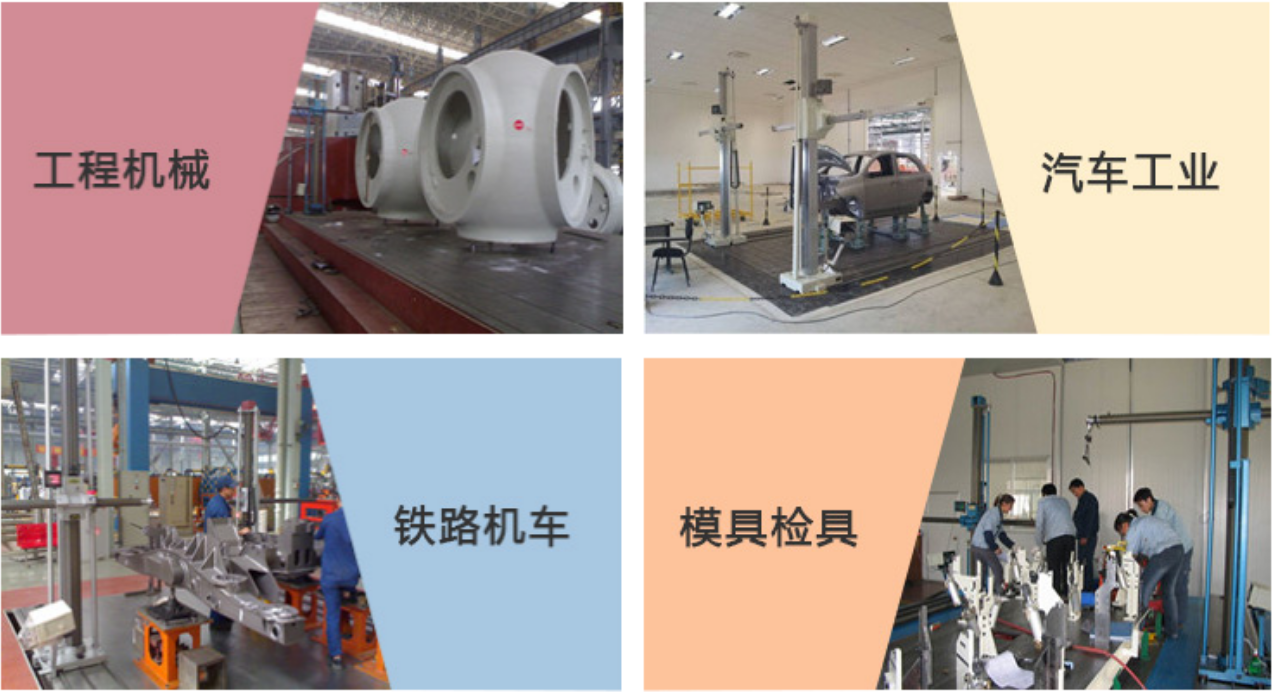

Application Case
