Single-arm 3D measuring and marking machine type A Lightweight, flexible, quick to install, and suitable for on-site production and testing

Product Description

This series of products can not only effectively complete the three-dimensional spatial measurement and mapping of complex parts and models, but also replace square boxes, styluses, and height gauges for marking detection. It is especially suitable for multi-directional measurement and marking of super-large covers and complex components at industrial production sites, as well as styling design work in the automobile and motorcycle industry.

◆Select precision displacement sensors with high IP protection levels to ensure that they meet the on-site use environment.

◆The column and horizontal arm are made of high-strength lightweight aluminum alloy material, and are naturally and artificially aged, as well as deeply anodized to ensure the stability, wear resistance and lightness of the whole machine; and the super-hard aluminum alloy material can be better applied to the magnetic grid sensor system, completely eliminating the phenomenon of "demagnetization" of the magnetic grid caused by steel and iron materials.

◆The Y direction adopts a central steel support and fine-tuning structure to strengthen the rigidity of the county arm and effectively eliminate the deflection deformation in the Y direction.

◆Real-time three-axis coordinate display.

◆The X-axis guide is a special linear guide rail in the shape of the "I" shape for machine tools. It is characterized by low friction coefficient, flexible movement, high precision, easy installation, and long-term accuracy.

◆Standard marking needle head components meet the convenient needs of marking and measurement; the digital display system uses a DC chassis, without external cables, and the equipment is more convenient and neat to use.

Technical Indicators

Unit: mm

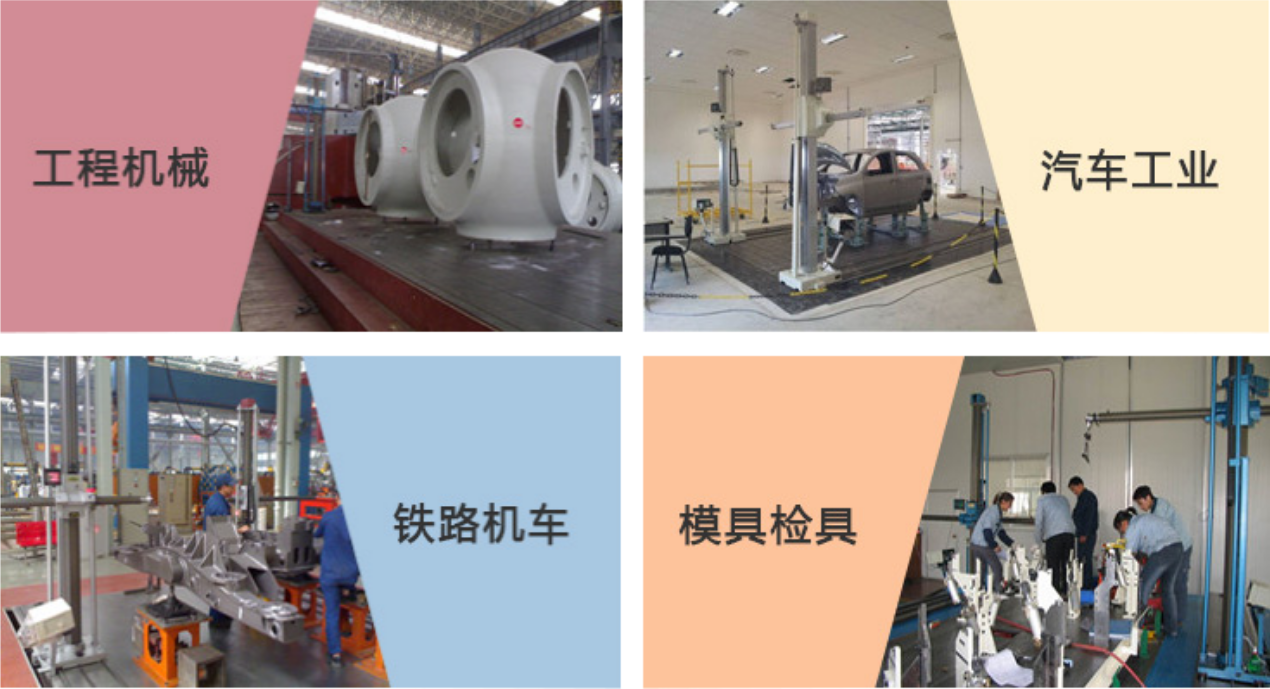

Application Case
