适用于极致低速的可溯源测量
ULS(Ultra-Low Speed)功能,是API深入行业,结合实际生产及科研需求,基于XD LASER激光干涉仪特性开发的可在极致低速条件下,对速度进行可溯源测量与评估的应用功能。可广泛适用于医疗行业、化工行业、精密阀门及泵体制造行业等对于机床或设备低进给量应用或加工速度控制有极致要求的行业及领域,为领域客户提供具有国际权威的速度可溯源精准测量。

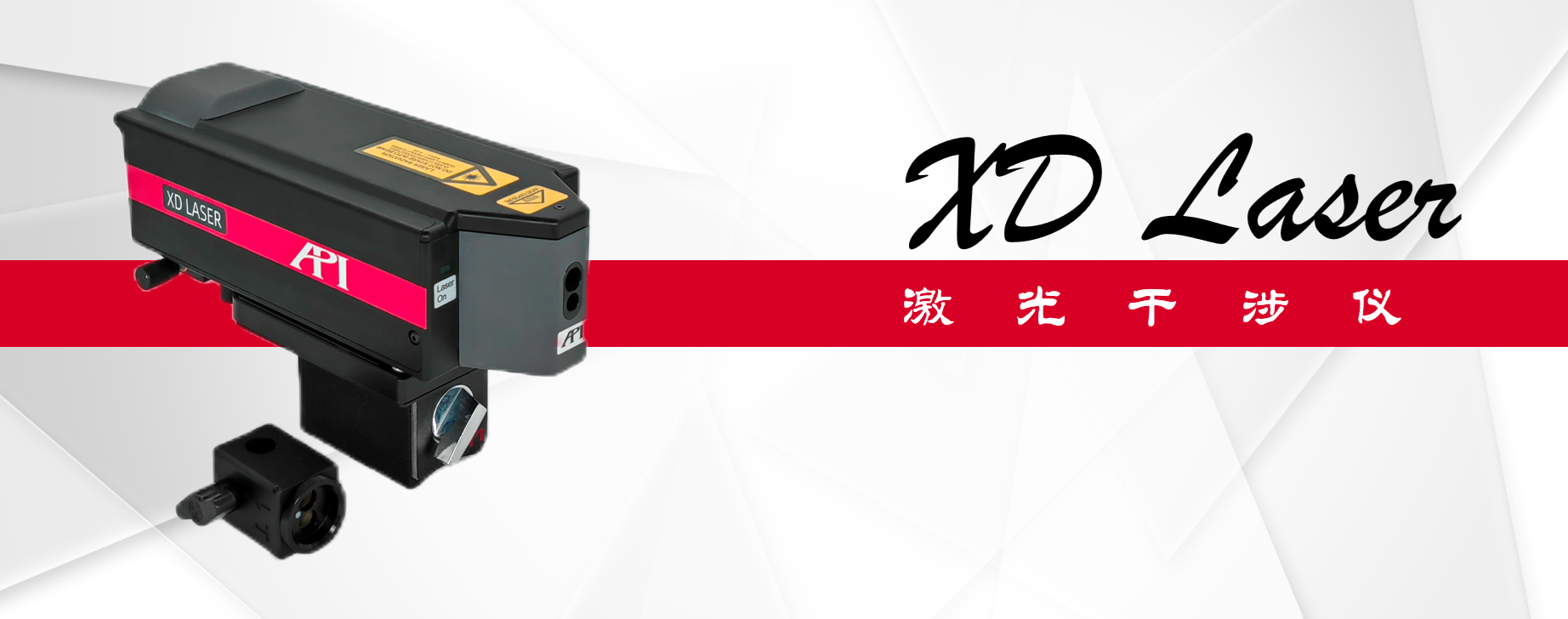

图1:API激光干涉仪
特征&特点
定位精度测量溯源 – XD LASER激光干涉仪定位精度测量可溯源至国家计量院标准器。
时间数据溯源 – XD LASER激光干涉仪计时采用的高精度晶体振荡器数据可溯源至国际计量局原子时(TAI)国际时间标准。
溯源权威保障 – 国家计量院定位测量精度溯源与国际计量局原子时时间溯源双重保障XD LASER激光干涉仪ULS超低速度测量数据的精准溯源。
大范围速度测量 – ULS功能可适用于从2μm/s(2×10-6m/s)至3m/s范围的速度测量,覆盖范围广。
高精度速度测量 – 基于XD LASER激光干涉仪的ULS速度测量精度,可在2μm/s(2×10-6m/s)至3m/s速度范围内实现10ppm(10/1,000,000)的测量精度。
适用领域 – 适用于医疗行业、化工行业、精密阀门及泵体制造行业、科研院所等对于机床或设备低进给量应用或加工速度控制有极致要求的行业及领域,为领域客户提供具有国际权威的速度可溯源精准测量。
源于权威机构的溯源保障
具有国际权威的速度v的精准测量,源于在v=Δx/Δt的计算中,对于位移Δx与时间Δt的可溯源保障。XD LASER激光干涉仪的定位测量精度可溯源至国家计量院标准器;与此同时,XD LASER内部采用了超高精度(1ppm)的晶体振荡器来确保时间计数精确,该晶体振荡器可溯源至国际计量局(BIPM)基于铯(Cs 132.9)时钟得出的原子时(TAI)国际时间标准。由此,基于国际权威的可溯源速度测量得以实现。

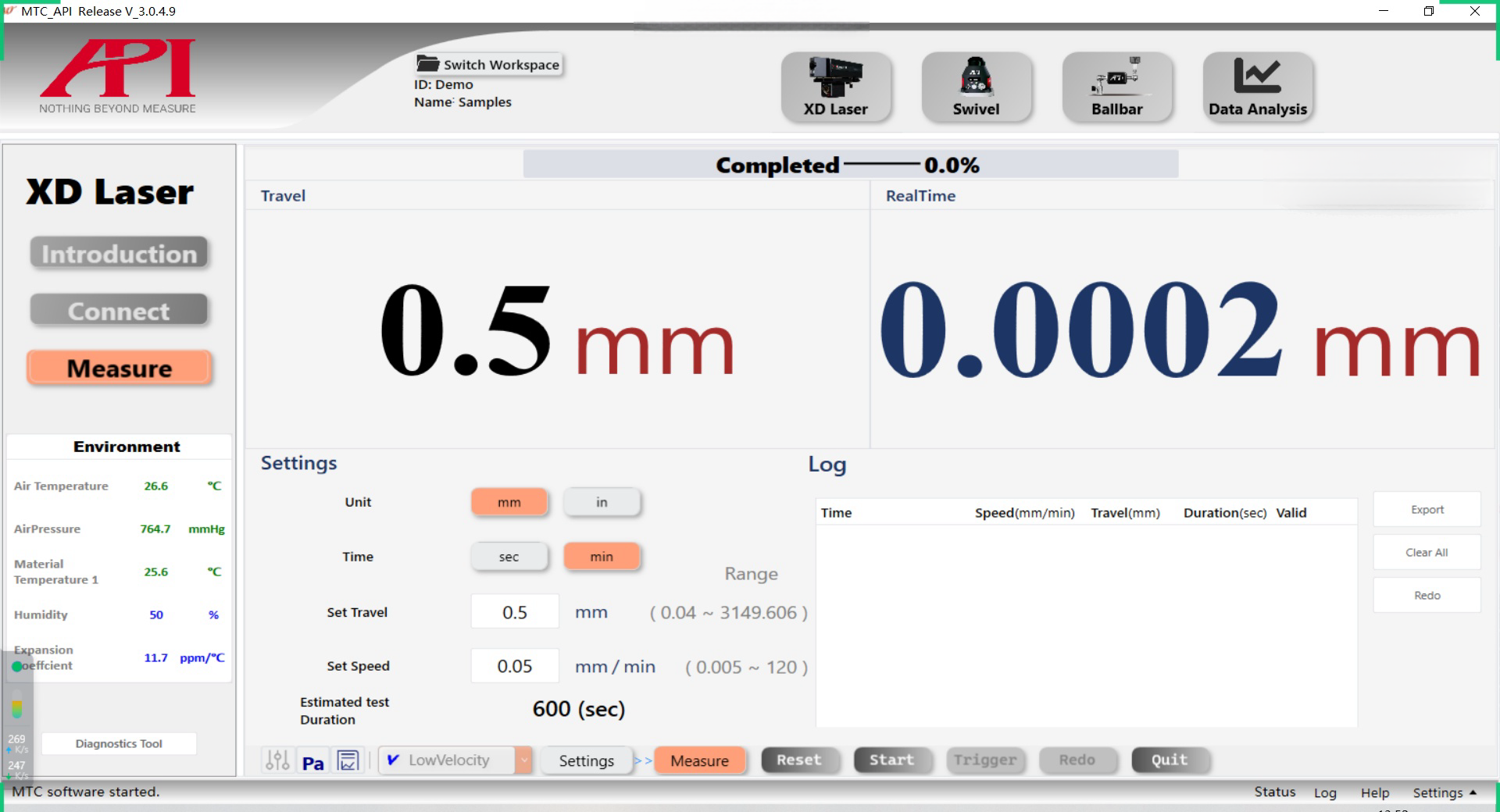

图2:软件设置及数据示意

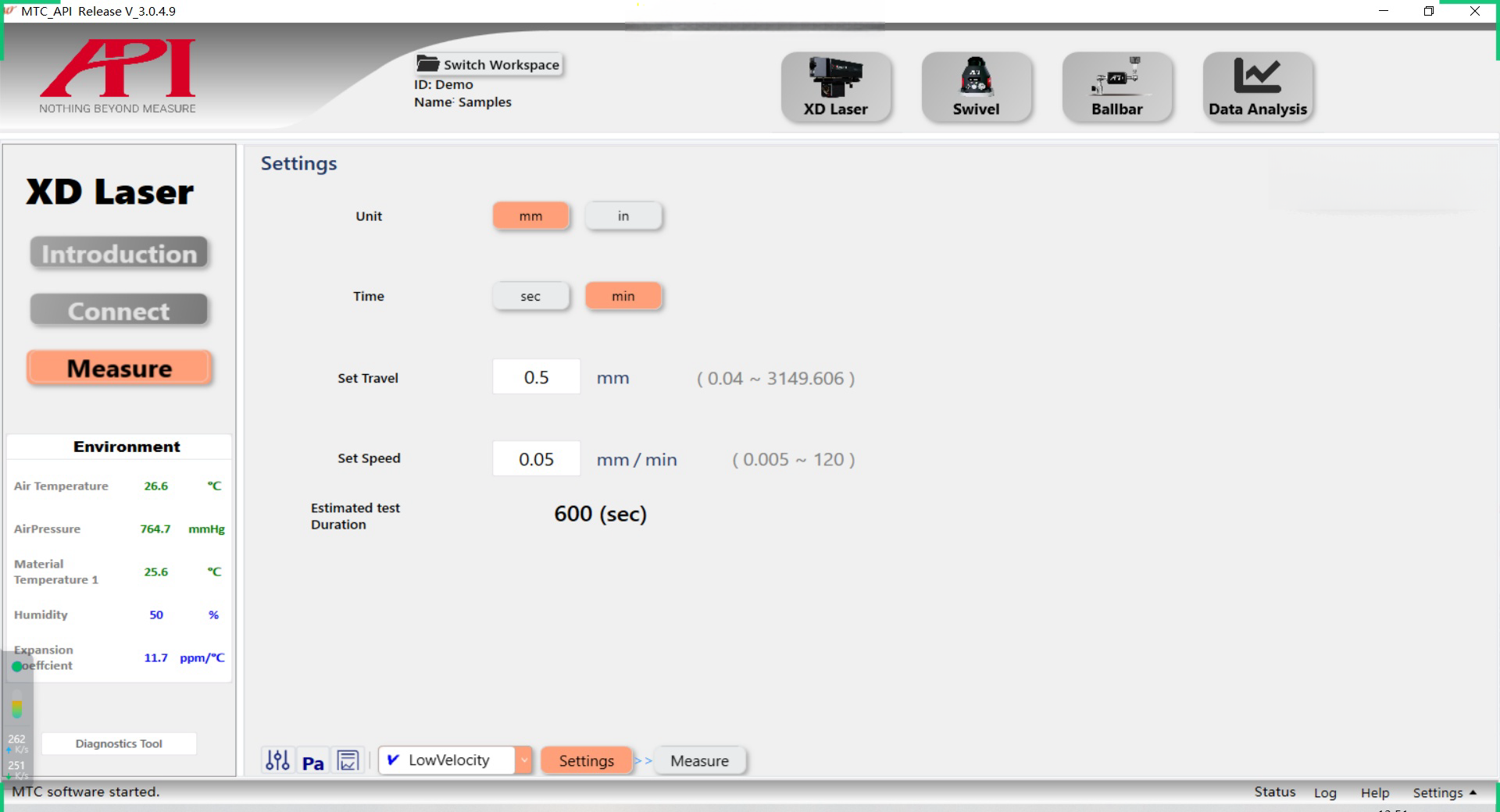

图3:软件设置及数据示意
主要参数
项目 | 参数或描述 |
定位溯源 | 国家计量院 |
时间溯源 | 国际原子时(TAI) |
最小测量速度 | 2μm/s(2×10-6m/s) |
最大测量速度 | 3m/s |
速度测量精度 | 10ppm |
