About Oilclay Modeling

Oilclay modeling plays an important role in many fields such as: automobiles, electric vehicles, rail vehicles, heavy industry, yachts and other industrial products, as well as toys, special effects, sculpture and art creation, especially where rapid prototyping, fine modeling, visual evaluation and collaboration are required.

API Portable Fully Automated Model Processing System

For large-scale industrial products, such as automobile design, electric vehicle design, etc., API provides you with a series of Horizontal Arm Model Milling Machine based on Galaxy Model Milling Platform, which can provide fast and stable output quality and escort the model processing.

For sculpture and art creation, API has also developed a more flexible multi-degree-of-freedom model machining system, i.e. API Portable Fully Automated Model Machining System, by combining the actual needs of users in the field of work.

This portable and fully automatic model processing system is composed of a high-power air-cooled inverter spindle, a rotary indexer, and an operating system, providing a convenient and fast solution for engraving and artwork model processing.

Features

API portable automatic model processing system features are summarized as follows:

1, can be combined with the market mainstream robot body load, such as: KUKA, YASKAWA, etc.;

2, the system repetitive positioning accuracy: 0.2mm;

3, can be 1500mm in height, 600mm in diameter of the three-dimensional sculpture, or the length of 2000mm, the width of the relief 1000mm for the Smooth processing;

4, Styrofoam (EPS), resin, plaster, wood, wood and other processing materials applicable;

5, rotary indexing machine (7th axis): with AC servo motors, RV gearboxes, external axis coordination software, servo drives, servo amplifiers, automatic rotary positioning during processing;

6, equipped with external frequency converter air-cooled electric spindle as a machining spindle system, to protect the processing of strength, stability and smoothness. Strength, stability and smoothness;

7, hand-held teaching box: menu-type bilingual display, Chinese keyboard, LCD touch screen;

8, open the robot network communication parameters: real-time transmission of the program, the size of the engraving program file is not restricted, to facilitate the processing of complex large-scale modeling.

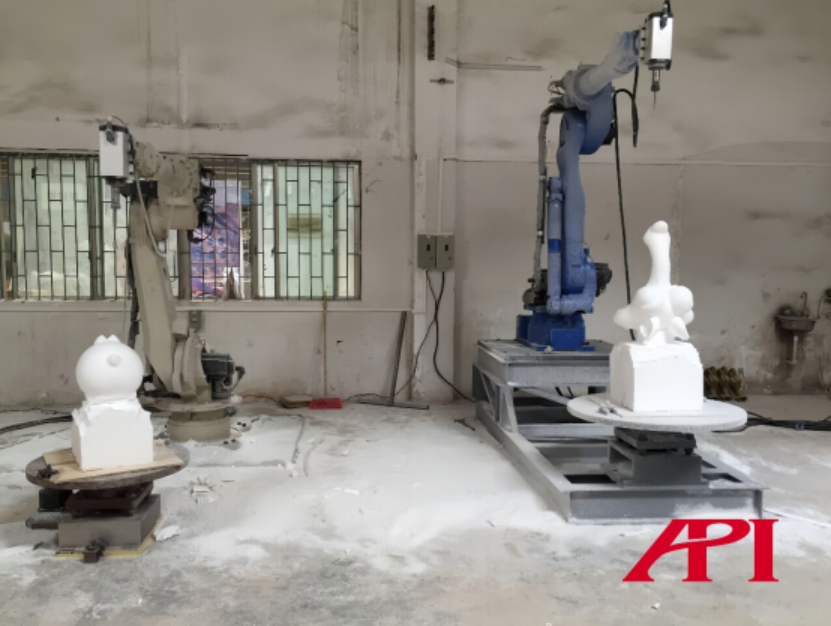

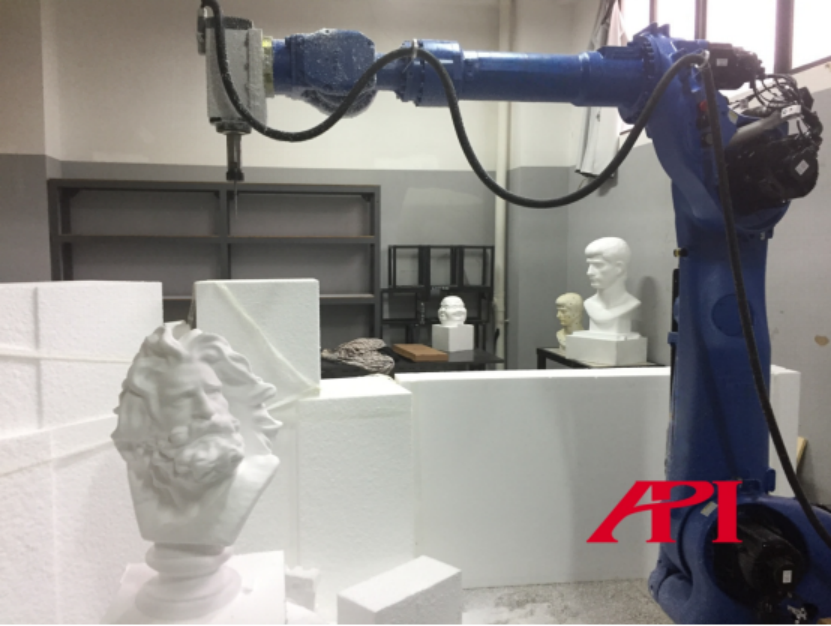

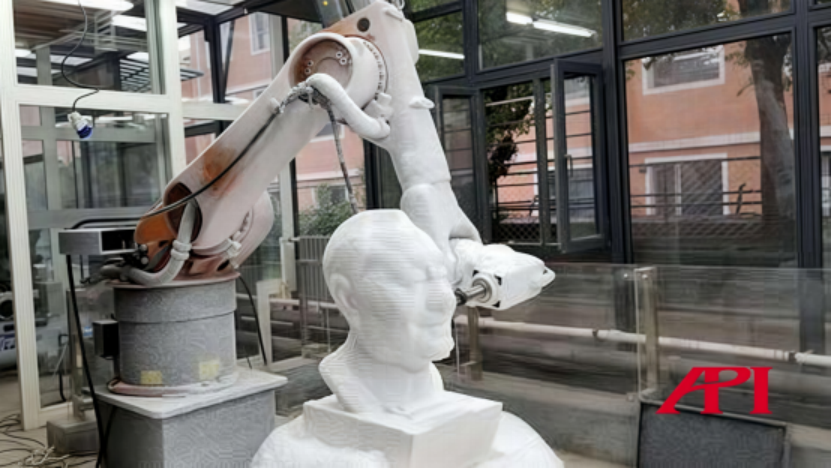

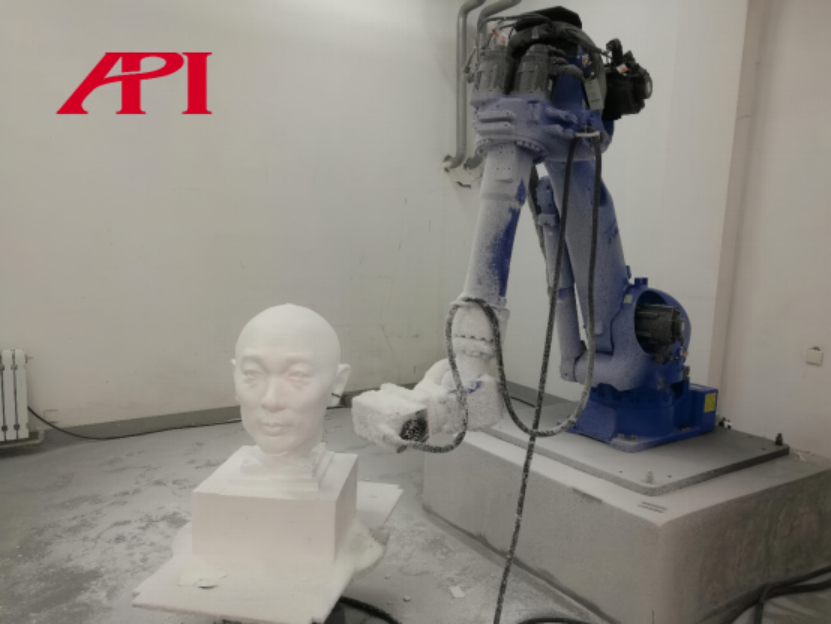

Sample display

Summary

After practical verification, API portable fully automatic model processing system, with easy application and strong on-site practicability, can provide strong processing guarantee for the production of models of oil clay, foam, numerical value, gypsum, and wood substitution in the field of sculpture and artwork design and production, and quickly convert the digital model into a three-dimensional physical model, which becomes the key link connecting the conceptual sketches and the final engineering data, and plays the important role of difficult to ｒｅｐｌａｃｅ. Role.
