5-Axis CNC and Precision Inspection

With the rapid development of CNC machine tool manufacturing technology, 5-axis CNC machine tools have become a core productive force in fields such as aerospace, medical manufacturing, electronics manufacturing, precision instrument manufacturing, defense manufacturing, and scientific research and development. This is due to their high technological content, high precision, and strong capability in processing complex curved surfaces, resulting in an increasingly higher market share. Within this high-end manufacturing environment, the overall performance enhancement of 5-axis machine tools and issues regarding precision inspection have received particular attention.

Challenges Encountered in 5-Axis CNC Inspection

Generally speaking, a 5-axis CNC machine tool comprises three linear axes and two rotary axes. The detection of linear axes can be achieved using conventional laser interferometers; however, the detection of rotary axes, particularly the swivel axis of the machine tool, has become a problem. Using indirect measurement methods requires fabricating a large amount of specialized fixtures for the equipment and disassembling some mechanical components, which is time-consuming and labor-intensive. Moreover, errors from linear axes are introduced during the measurement process, affecting the accuracy of the results.

API Solution

The combination of API XD Laser laser interferometer and Swivelcheck angular swing check device efficiently resolves various difficulties encountered in 5-axis CNC machine tool inspection.

API developed the XD Laser 6D laser interferometer, capable of measuring six parameters in a single setup. It simultaneously detects six indicators: X, Y, Z, pitch angle, yaw angle, and roll angle. It diagnoses and evaluates the positioning accuracy, repeat positioning accuracy, backlash, straightness in horizontal and vertical directions of guide rails, and pitch/yaw/roll angle errors at each measurement point of the CNC machine tool. With only one set of mirror assemblies and a single installation measurement, it saves users' purchase costs and the time required for repeated optical path adjustments when using conventional laser interferometers.

Practical application has proven that using the API XD Laser 6D laser interferometer for inspection improves efficiency by up to 5 times compared to using conventional laser interferometers!

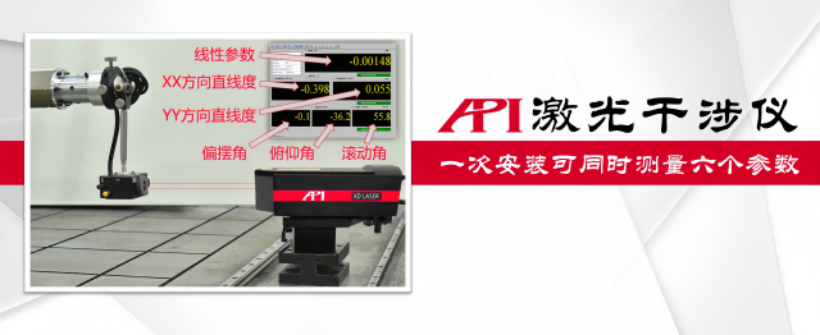

Figure 1: API XD LASER Six-Dimensional Laser Interferometer, detecting 6 parameters simultaneously with a single installation

At the same time, API also specifically developed the Swivelcheck angular swing check device for quickly inspecting angular errors of CNC machine tool rotation.

The Swivelcheck angular swing check device can be used independently or in conjunction with the XD Laser laser interferometer:

When used with the XD Laser laser interferometer, it can measure the angular accuracy of the horizontal rotary axis of the CNC machine tool, with a measurement accuracy of ±1 arcsecond; when used independently to measure the angular accuracy of the swivel axis, the measurement accuracy reaches ±2 arcseconds, without the need to disassemble key machine tool components.

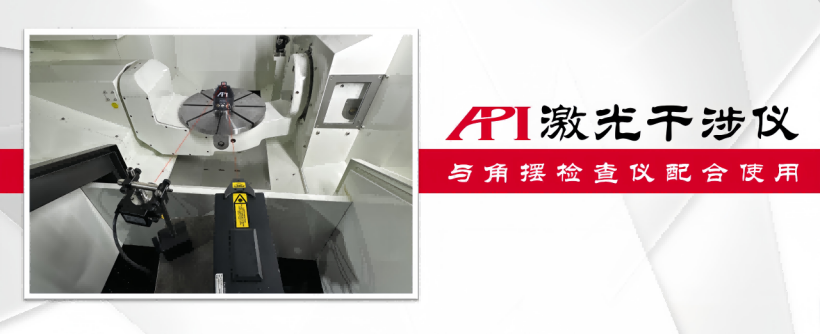

Figure 2: Angular Swing Check Device Used with Laser Interferometer to Detect Horizontal Rotary Axis Angular Accuracy

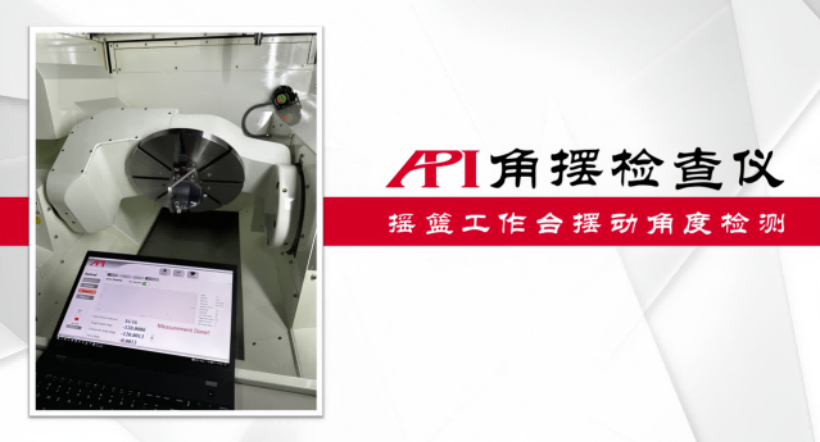

Figure 3: Angular Swing Check Device Used Independently to Detect Swivel Angle of Gantry Worktable

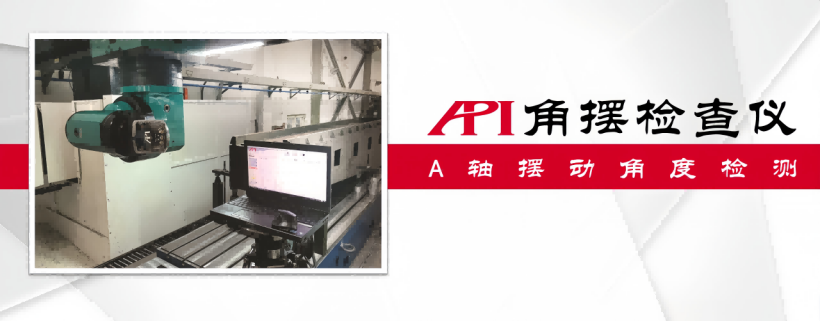

Figure 4: Angular Swing Check Device Used Independently to Detect Swivel Angle of A-Axis

Summary

The combination of API brand XD Laser laser interferometer and Swivelcheck angular swing check device fully meets the requirements for detecting linear accuracy and various angular accuracies of 5-axis CNC machine tools. Featuring a user-friendly human-machine interface, simple operation, convenience, and speed, it efficiently achieves measurement and calibration of 21 geometric accuracy items of the machine tool.

Figure 5: API Company Headquarters Building

About API

Founded by Dr. Kam Lau in Rockville, Maryland, USA in 1987, API is the inventor of laser trackers and holds multiple patents on globally leading measurement technologies, serving as a leader in precision measurement technology; since its establishment, API has been dedicated to the research, development, and production of precision measuring instruments and high-performance sensors for the machinery manufacturing industry. Its products are widely applied in advanced manufacturing sectors worldwide, and the company leads in high-precision standards for coordinate metrology and machine tool performance testing.
